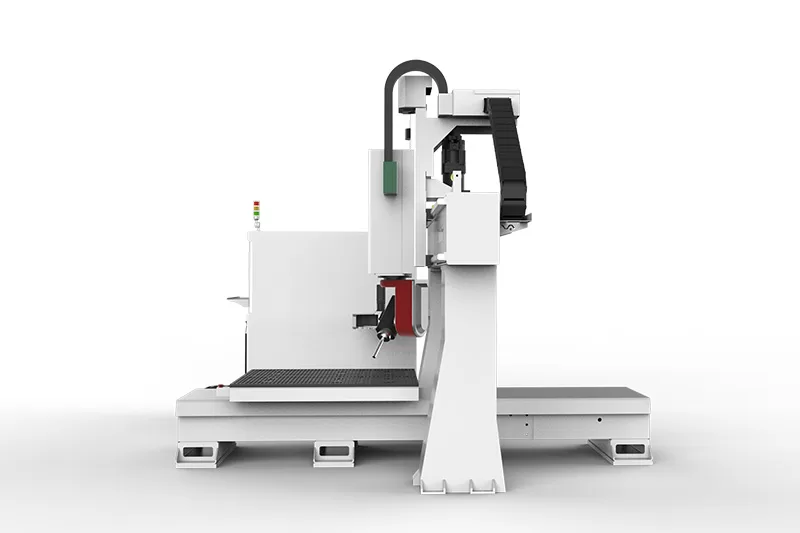

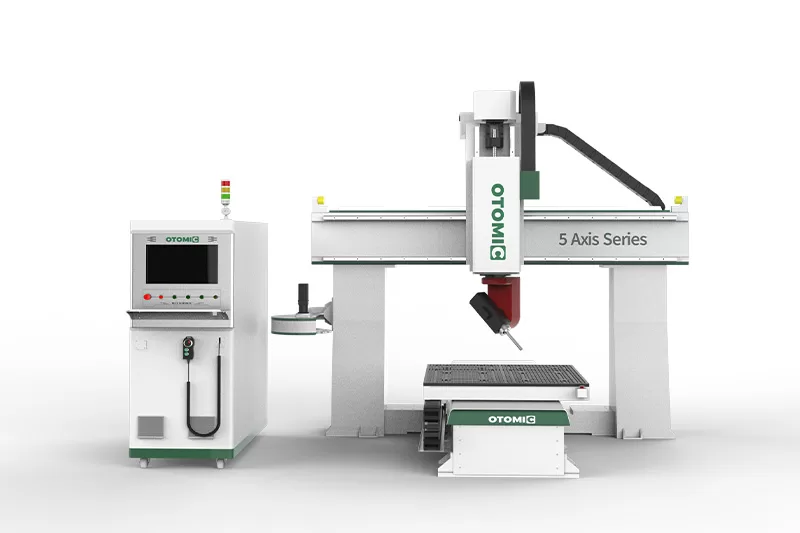

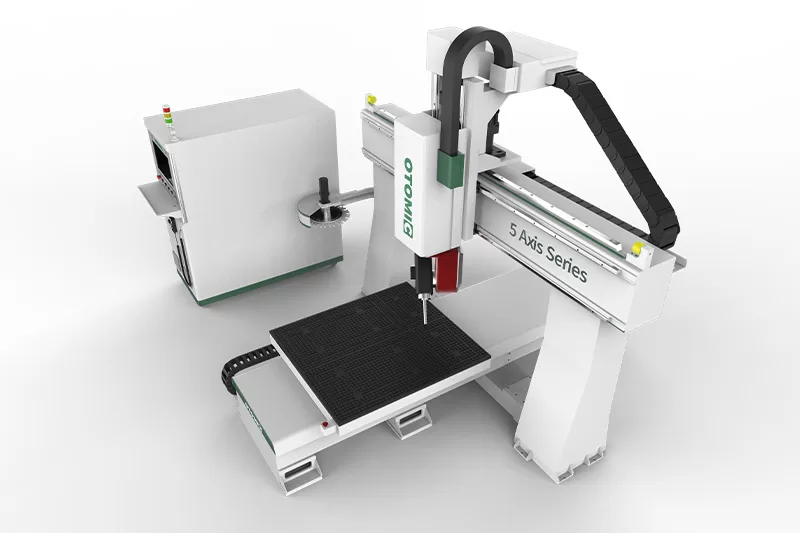

5 Axis CNC Machining Center for 3D Models

5 Axis CNC Machining Center for 3D Models

This CNC machine is an entry-level five-axis CNC machining center for beginners and small business. It has the advantages of convenient movement, which is widely used in making 3D foam models.

* Contact us for latest price for customized machine according to your project's requirements of table formats, functions, etc.

Get a Free Quote

Category: CNC Router 5 Axis

Features

1.Using world-famous brand accessories to ensure high processing accuracy, three-dimensional five-sided processing can be easily achieved, and each surface of the product can be evenly cut and engraved.
2.It has a wide range of applications and can be used for product processing in the model industry, 3D processing, furniture industry, decoration industry and other industries.
3.The fuselage adopts a worktable that can be moved forwards and backwards, which is convenient for processing, large load-bearing, and firmer.
4.The transmission adopts the Japanese Yaskawa servo motor and the Japanese SHIMPO high-performance reducer, the machine processing is faster and more stable.
5.It integrates deep relief, drilling, sawing, edging, chamfering, milling, hollowing, polishing and other processes.

Parameters

Model	Omic 1212F
X,Y axis travel	1200X1200mm
Z axis travel	500mm-700mm
Spindle type	10kw-12kw water cooling ATC spindle，24000RPM
Inverter type	15kw Taiwan Delta inverter
Tool magazine	Carousel tool changer with 8/12pcs magazine
Tool holder with collet	HSK F63 tool holder
Control system	Syntec 610-E5 5 axis control system with RTCP functions
Driving system	X, Zaxis 1.3kw Y axis 1.8kw Japan Yaskawa servo motors
Reducer	Japan Shimpo
Machine structure	Heavy duty body with quenching treatment
Work table	Removable working table
Linear guide	X axis: Taiwan 30# Linear guide Y axis: Taiwan 30# Linear guide Z axis: Taiwan 30# Linear guide
Transmission	X axis:Taiwan Linear Grinding grade racks M2-1000 Y axis:Taiwan TBI Grinding grade screw, 4040-3100 Z axis:Taiwan TBI Grinding grade screw, 3210-1300
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Powermill software
Command language	G Code
Traveling speed	80m/min
Working speed	0-60m/min
Working voltage	380V 3PH 50HZ/ 60HZ（220V for option）

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type
Air Compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
table type	Vacuum table
